D023G

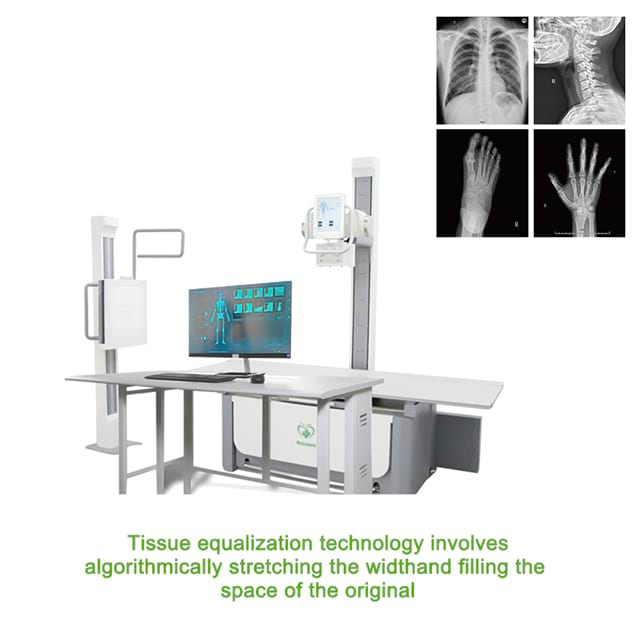

The medical diagnostic radiography machine is mainly used by medical units for the photographic examination of the human chest, limbs, pelvic cavity and lumbar vertebra. The product can be controlled remotely, the ball tube and the detector move vertically, and the high-resolution FPD/CCD detector is optional
Product Advantage:
1. Our software comes with splicing function, and the products are developed and assembled by our own factory
2. Domestic ball tube, with Canon (Toshiba) ball tube are the same service life (life of 10 years, but properly maintained 20 years can be used)
3. Parameters and exposure can be adjusted on the display
4. Desktop brand: Dell
5. The head screen is 10 inches
6. Room size: 4*6*3.5m
Product Uses:
Can be used for human and animal software switch (one machine 2 use, can be animals or people)
Product Operate Guide：
The operation of the machine is not done once and for all, and it is necessary to pay special attention to the state of the machine during each packaging process. In order to effectively manage and maintain the packaging machine and control the product quality, in addition to regular maintenance, the auxiliary personnel and feeding personnel of the equipment also need to follow the following operating procedures.
Auxiliary personnel
Turn on the power switch
Check whether the air pressure is sufficient (must reach 0.6Mpa)
Click the host to start, and check whether each action is working properly
Check and clean up each box room
Put the bag, load the material, put the material box
Click the host to start
The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10)
During the production process, check the product sealing and pumping conditions continuously
Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean
The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand
High Frequency Generator
• Power Rating: 50KW
• Line Nominal, Phase: 380VAC, 3Φ
• Working frequency:50kHz-220kHz
• kV Range: 40~150KV
• mA Range: 10~630mA
• mAs Range:0.4 ~1000mAs
• Exposure Time Range:1ms～10000ms
X-Ray Tube
• Anode Heat Capacity: 300kHU/212kJ
• Focus spot size: 0.6/1.2mm
• Voltage: 150kV
• Anode Rotating Speed: 2800r/min(50Hz)
• X-ray Coverage: 420 * 420mm at SID 1000mm
Flat panel Detector
• Detector Technology: a-Si
• Scintillator: Csl
• lmage Size: 43X43cm(17X17in)
• Pixels Matrix: 3072 X3072
• Pixel Pitch: 139 μm
• A/D Conversion:16bit
• Minimum Detectable Dose: 14nGy
• Spatial Resolution:3.6LP/mm
• X-ray Voltage Range: 40-150KV
Collimator
• Power: 150W
• Operation: manual
• Auto-close Time: 35s±5s (adjustable from 30s to 60 S)
• Inherent Filtration: 1.5mm Al
• Brightness: ≥100lux (100cm)
Tube Stand
• The tube longitudinal stroke :1600mm
• The tube support arm can be extended or rotated
• The tube vertical stroke: 1300mm
• The tube rotation angle: ±90°
• The column rotation angle: ±180°
• Anti-scatter grid specification: Size: 450 × 450mm; Line: 40 L/cm; F.D: 100cm
• Ratio: 10:1
4 Way floating table
• Tabletop size:2200*740*680mm
• Longitudinal movement range of tabletop:570mm
• Lateral movement range of tabletop:210mm
• Movement control mode: EM lock
Wall Bucky Stand
• Vertical moving range：610mm
• Movement control mode: mechanical lock
Workstation hardware
• Windows operating system
• CPU: i5/3.3 GHz
• RAM Capacity: 8 G
• Hard drive capacity: 1T
• Image displayer: 24inch
