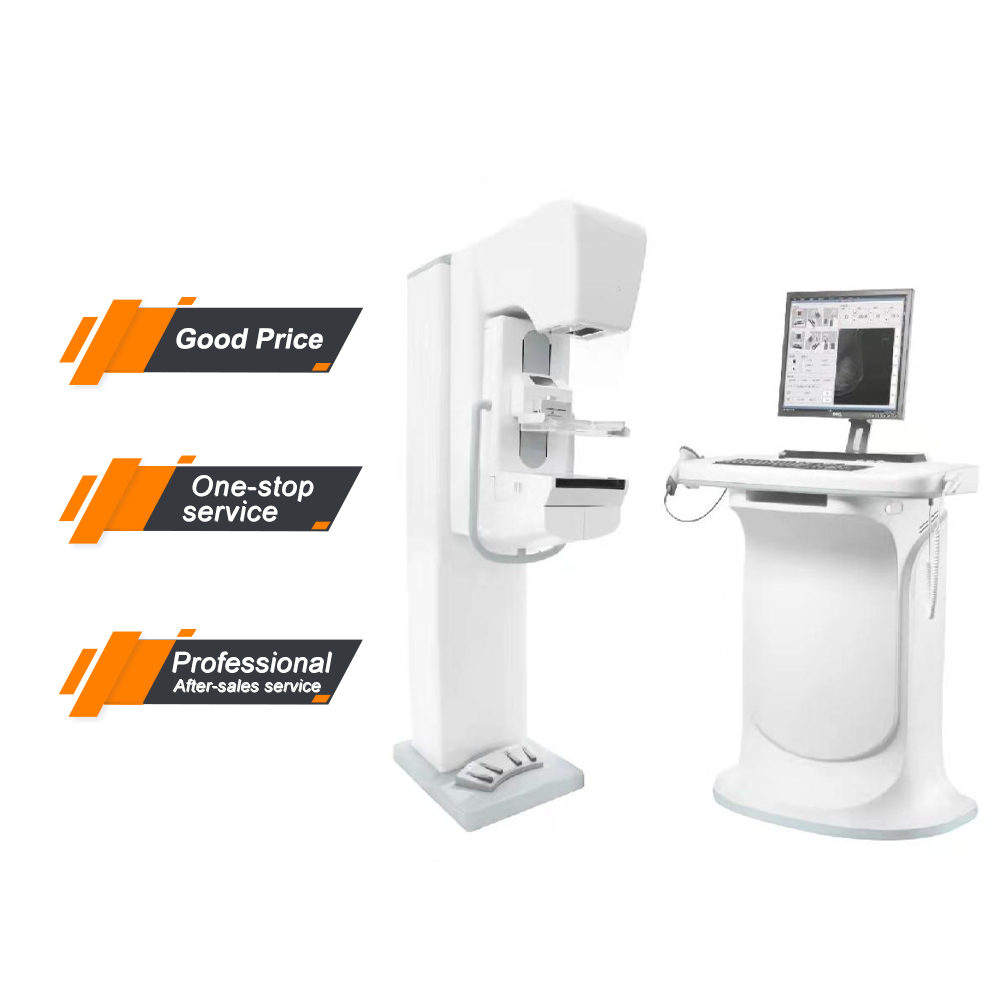

High-Resolution Digital Mammography System Electric Metal Mammography Machine with Low X-ray Dose

Share to:

High-Resolution Digital Mammography System Electric Metal Mammography Machine with Low X-ray Dose

Features
◆Professional mammography x-ray tube from Italian IAE with molybdenum provides extremely small focus spot, and owns high heat capacity. It guarantees high quality images and long working time.
◆Self R&D 40kHz high voltage generator uses dual-inverter technology, guaranteeing the stability of X-Ray, largely improving the clarity and quality of images with low dose.
◆Unique CMOS flat panel detector provides high-resolution images as it is sensitive to X-ray.

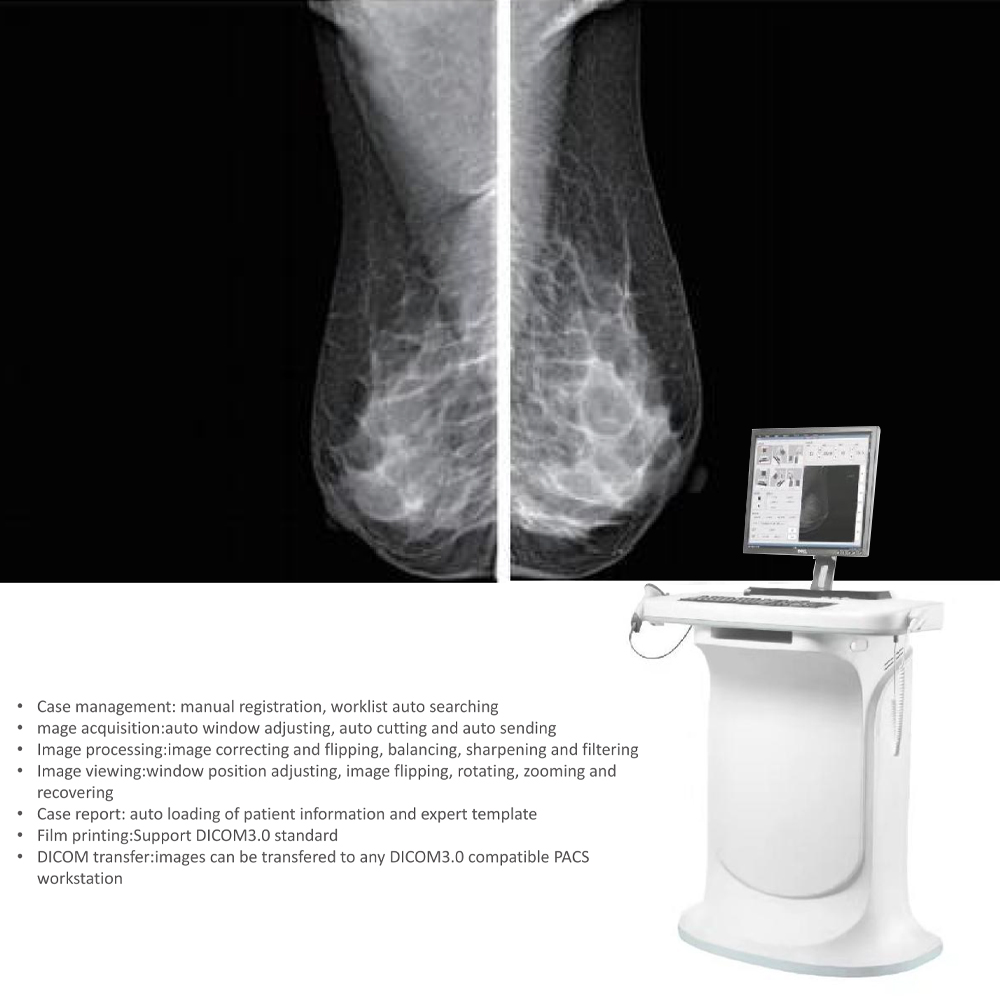

◆Self R&D ‘Console’ software with national patent, provides strong capabilities of post processing. It has leading post-processing algorithm of breast, which could bring you perfect mammary images.

◆27’’ LCD display.

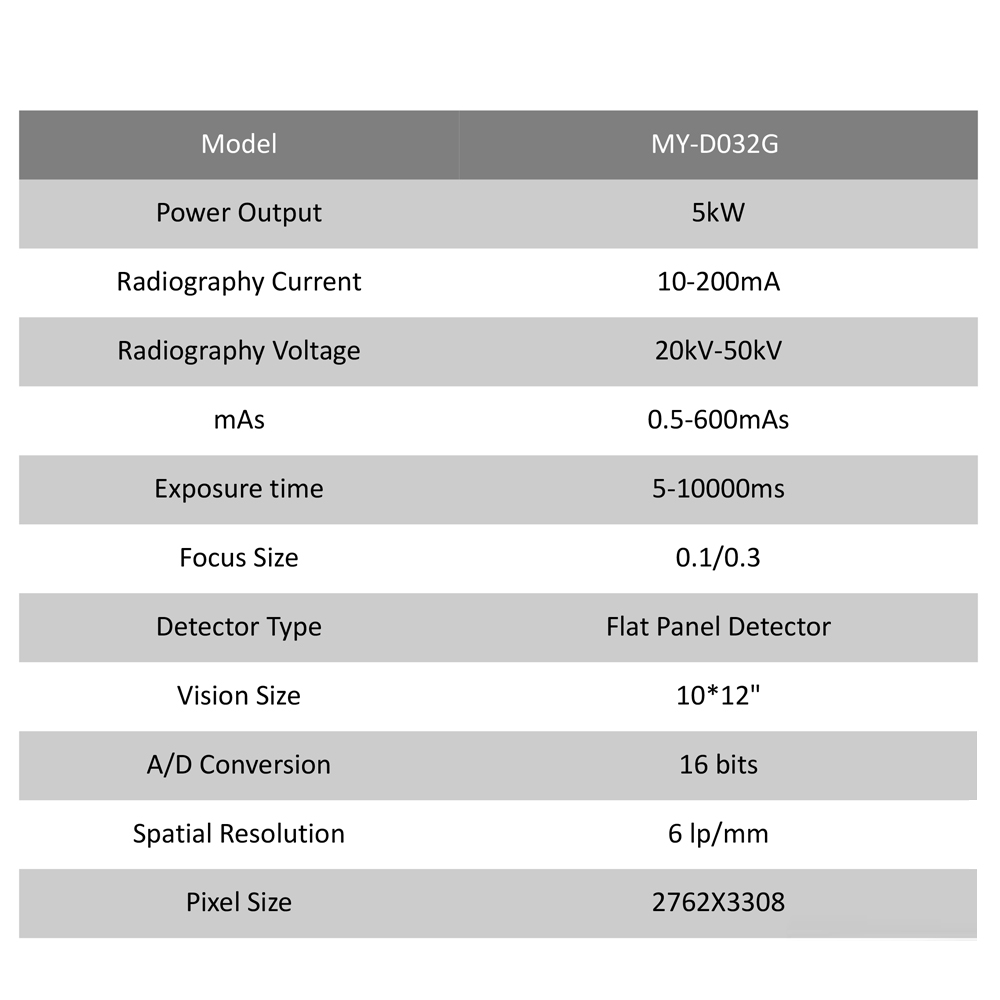

Specifications
Ambient Conditions
Ambient temperature 10℃～40℃
Relative humidity 30％～75％
Atmospheric 70～106kPa

X-ray Generator
Output power 5.0KW
Frequency 80-200KHZ
Current 10-200mA
Voltage 20-50KV
Exposure time 5-10000s
mAs 0.5mAs-600mAs
Self-diagnostic system Tube overload protection

X-ray Tube
Brand IAE (Italy)
Anode type Rotating Anode
Focal spot value 0.1mm /0.3mm
Maximum voltage 40KV
Anode heat storage capacity 300KHU
House heat storage capacity 426KHU
Target material Molybdenum
Anode rotation speed 10000rpm
Maximum anode heat dissipation rate 500W

X-ray detector( Flat Panel Detector)
Scintillator Cesium Iodide
Active area 235*290mm
Active pixel 2762*3408
Pixel pitch 85um
AD Conversion(bit) 16
Spatial resolution 60Lp/cm

Mechanical Device
SID 650mm
Exposure field 240mm*300mm(Maximum)
Up-down movement of c-arm ≥600mm
Rotational angles of c-arm -90°～+90°(Electromagnetic lock)
Rotational angles of tube -30°～+30°

Compression Paddle
Movement type Electric
Up-down movement range ≥210mm
Size of compression paddle 260mm*180mm
Pressure range 0～20kg (0.1kg step)

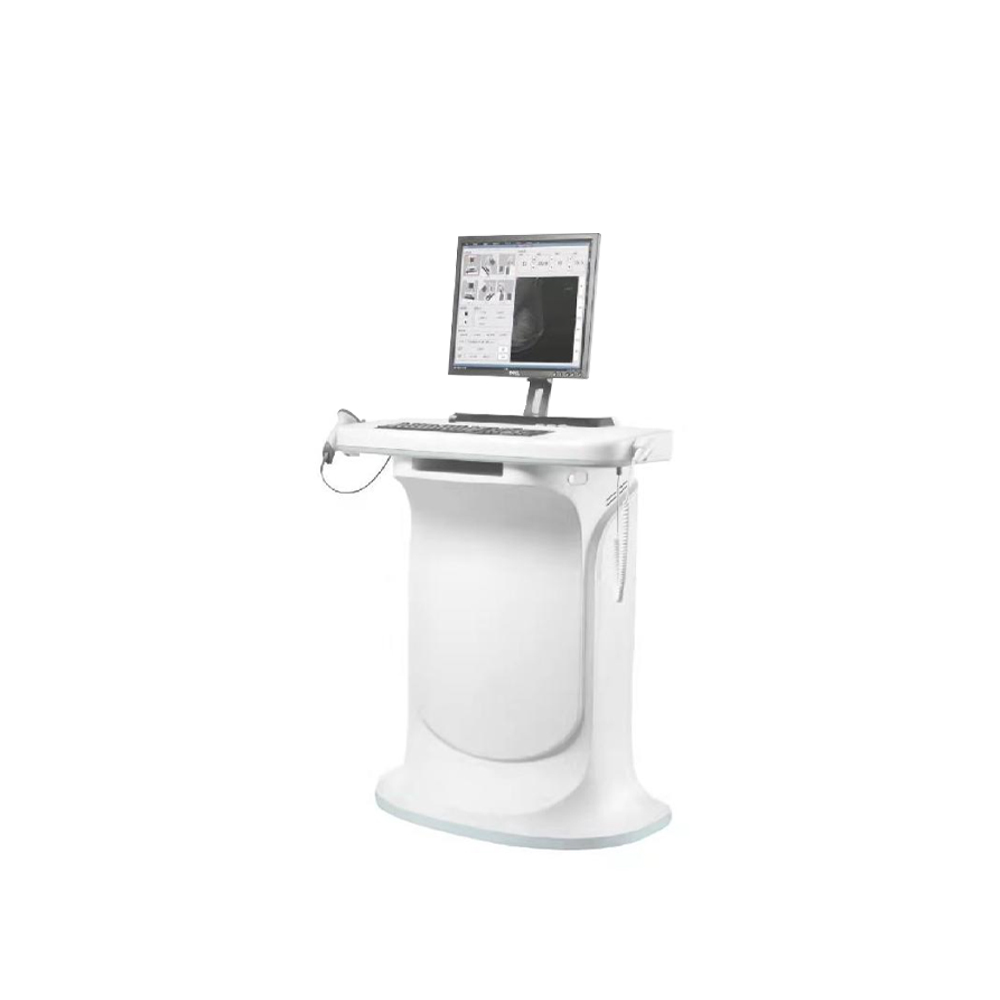

Workstation
Dual-core CPU 3.3GHz
Memory 4GB
HDD 500GB
Discrete Graphics 1920*1200
Monitor 27’’ 3.5M LCD

Availability:

Quantity:



Inquire Add to Basket

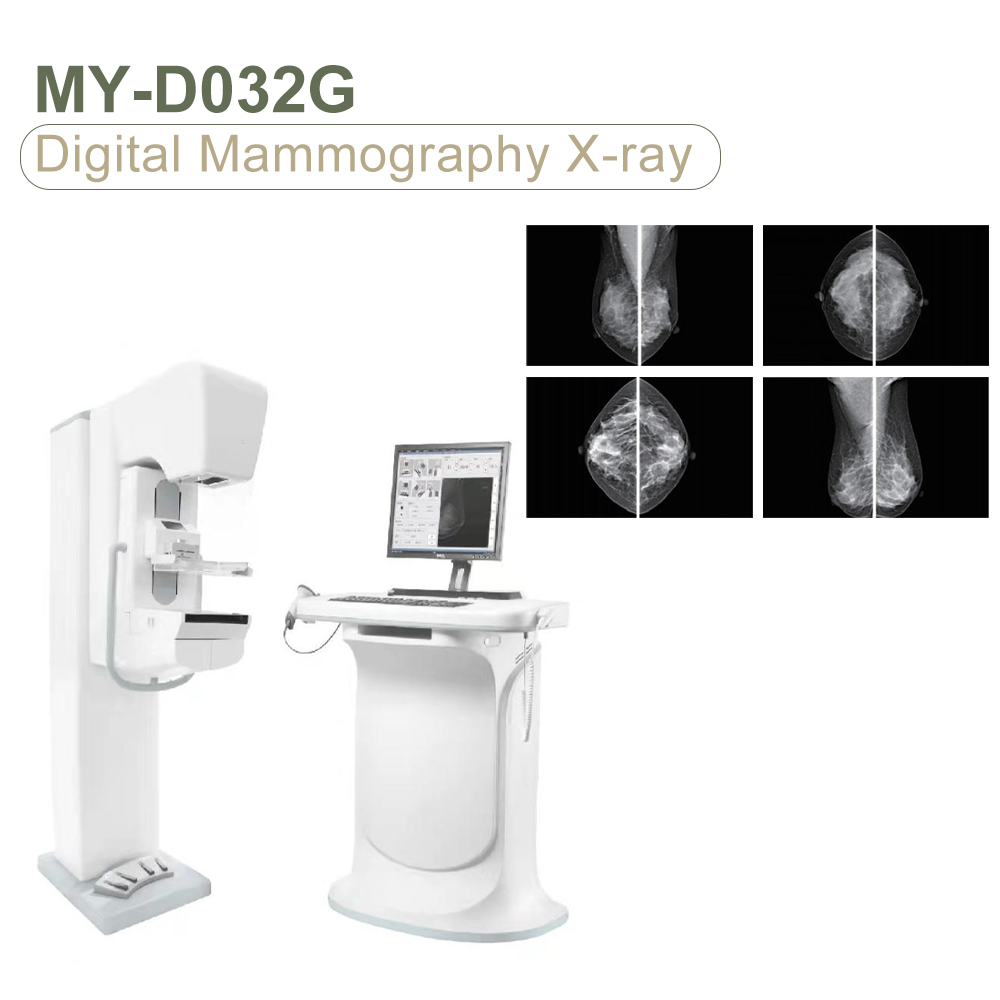

Model:
D032G

Low X-ray Dose Mammography Digital Mammography System PRICE Medical Mammography mammography machine mammography machine price oem low price mammography machine x-ray DIGITAL MAMMOGRAPHY SYSTEM

Product Description

Technical Parameters

FAQ

The medical diagnostic radiography machine is mainly used by medical units for the photographic examination of the human chest, limbs, pelvic cavity and lumbar vertebra. The product can be controlled remotely, the ball tube and the detector move vertically, and the high-resolution FPD/CCD detector is optional

Product Advantage:

1. Our software comes with splicing function, and the products are developed and assembled by our own factory
2. Domestic ball tube, with Canon (Toshiba) ball tube are the same service life (life of 10 years, but properly maintained 20 years can be used)
3. Parameters and exposure can be adjusted on the display
4. Desktop brand: Dell
5. The head screen is 10 inches
6. Room size: 4*6*3.5m

Product Uses:

Can be used for human and animal software switch (one machine 2 use, can be animals or people)

Product Operate Guide：

The operation of the machine is not done once and for all, and it is necessary to pay special attention to the state of the machine during each packaging process. In order to effectively manage and maintain the packaging machine and control the product quality, in addition to regular maintenance, the auxiliary personnel and feeding personnel of the equipment also need to follow the following operating procedures.

Auxiliary personnel

Turn on the power switch
Check whether the air pressure is sufficient (must reach 0.6Mpa)
Click the host to start, and check whether each action is working properly
Check and clean up each box room
Put the bag, load the material, put the material box
Click the host to start
The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10)
During the production process, check the product sealing and pumping conditions continuously
Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean
The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand

Features

◆Professional mammography x-ray tube from Italian IAE with molybdenum provides extremely small focus spot, and owns high heat capacity. It guarantees high quality images and long working time.

◆Self R&D 40kHz high voltage generator uses dual-inverter technology, guaranteeing the stability of X-Ray, largely improving the clarity and quality of images with low dose.

◆Unique CMOS flat panel detector provides high-resolution images as it is sensitive to X-ray.

◆Self R&D ‘Console’ software with national patent, provides strong capabilities of post processing. It has leading post-processing algorithm of breast, which could bring you perfect mammary images.

◆27’’ LCD display.

Specifications

Ambient Conditions

Ambient temperature 10℃～40℃

Relative humidity 30％～75％

Atmospheric 70～106kPa

X-ray Generator

Output power 5.0KW

Frequency 80-200KHZ

Current 10-200mA

Voltage 20-50KV

Exposure time 5-10000s

mAs 0.5mAs-600mAs

Self-diagnostic system Tube overload protection

X-ray Tube

Brand IAE (Italy)

Anode type Rotating Anode

Focal spot value 0.1mm /0.3mm

Maximum voltage 40KV

Anode heat storage capacity 300KHU

House heat storage capacity 426KHU

Target material Molybdenum

Anode rotation speed 10000rpm

Maximum anode heat dissipation rate 500W

X-ray detector( Flat Panel Detector)

Scintillator Cesium Iodide

Active area 235*290mm

Active pixel 2762*3408

Pixel pitch 85um

AD Conversion(bit) 16

Spatial resolution 60Lp/cm

Mechanical Device

SID 650mm

Exposure field 240mm*300mm(Maximum)

Up-down movement of c-arm ≥600mm

Rotational angles of c-arm -90°～+90°(Electromagnetic lock)

Rotational angles of tube -30°～+30°

Compression Paddle

Movement type Electric

Up-down movement range ≥210mm

Size of compression paddle 260mm*180mm

Pressure range 0～20kg (0.1kg step)

Workstation

Dual-core CPU 3.3GHz

Memory 4GB

HDD 500GB

Discrete Graphics 1920*1200

Monitor 27’’ 3.5M LCD

1. Who Are We?

We are based in Guangzhou, China, start from 2011,sell to Mid East (31.00%), Africa(23.00%),South America(18.00%), North America(13.00%) ,Southeast Asia(12.00%),Oceania(1.00%), Western Europe (1.00%),Central America(1.00%). There are total about 11-50 people in our office.

2. How Can We Guarantee Quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

3.What Can You Buy From Us?

CT/MRI; Laboratory Equipment; Diagnostic Equipment; ICU Equipment; Theatre Equipment; Hemodialysis Equipment.

4. Why Should You Buy From Us Not From Other Suppliers?

1.13 years medical equipment leading exporter

2.One-stop service

3.High quality assurance system

4.Best Professional after-sell service with branch in Nigeria and Madagascar

5.Factory price

5. What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF, EXW,FAS,CIP,FCA,DEQ;

Accepted Payment Currency: USD, EUR,CAD, AUD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card,PayPal, Western Union, Cash,Escrow;

Language Spoken:English, Chinese,Spanish, Japanese, Portuguese, German, Arabic, French,Korean
