D019S

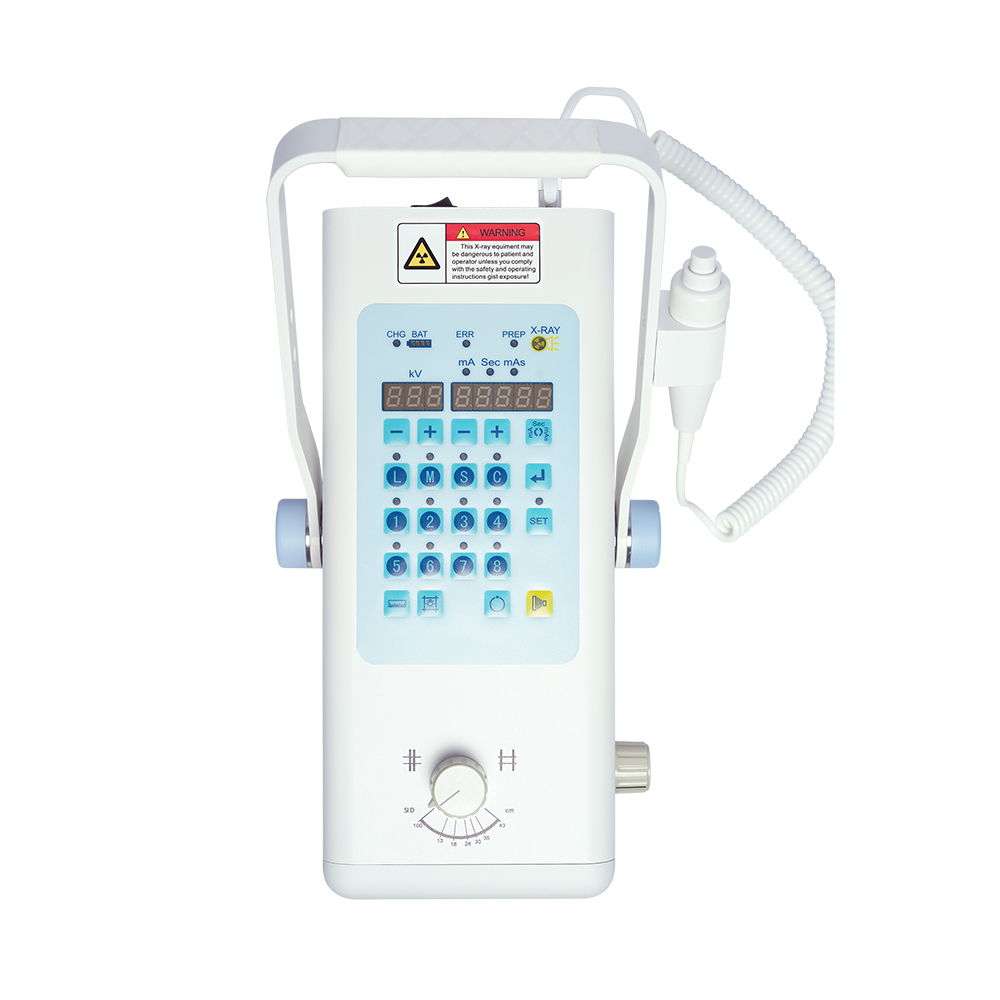

Portable X-ray machine is a small (miniature) X-ray machine that can achieve the purpose of perspective by X-ray imaging. Portable X-ray machine is mainly composed of X-ray tube and power supply and control circuit, etc.
Product Advantage:
1: high frequency, low dose, high-definition digital image output
2: the use of new imaging technology and built-in high pressure generation device, and the new imaging technology has a high sensitivity, the ray dose is very low, so as to ensure the safety of the operator and the patient.
3: Focus: 0.05mm
Product Uses:
Can be used for human and animal software switch (one machine 2 use, can be animals or people)
Product Operate Guide：
The operation of the machine is not done once and for all, and it is necessary to pay special attention to the state of the machine during each packaging process. In order to effectively manage and maintain the packaging machine and control the product quality, in addition to regular maintenance, the auxiliary personnel and feeding personnel of the equipment also need to follow the following operating procedures.
Auxiliary personnel
Turn on the power switch
Check whether the air pressure is sufficient (must reach 0.6Mpa)
Click the host to start, and check whether each action is working properly
Check and clean up each box room
Put the bag, load the material, put the material box
Click the host to start
The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10)
During the production process, check the product sealing and pumping conditions continuously
Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean
The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand
| General parameter | |
Output Power | 5.3kW |
Rated Voltage | 220VAC ,‡10%, 50/60Hz |
Inverter Frequency | 100kHz +/- 5% |
kV accuracy | ≤±(5%) (mA>25mA,ms>5); |
mA accuracy | ≤±(10% +1mA) (mA≤25mA); |
Rotor | Fixed Rotor |
| Exposure parameter | |
kV Range | 40kV-125kV. 1kV step |
MA Range | 10-100mA (R'20) |
ms Range | 1-4000ms (R'20) |
ms accuracy | ≤±(5% +0.2ms) |
mAs Range | 0.1-200mAs (R'20) |
mAs accuracy | ≤±(5%+0.2mAs) |
| Optional parameter | |
| Tech. mode | kV-mAs |
kV-mA-ms | |
APR num | 2000 |
Communication Interface | RS-232 |
Volume | 450*255*220 (include collimator ) |
Weight | 15k |
1. Who Are We?
We are based in Guangzhou, China, start from 2011,sell to Mid East (31.00%), Africa(23.00%),South America(18.00%), North America(13.00%) ,Southeast Asia(12.00%),Oceania(1.00%), Western Europe (1.00%),Central America(1.00%). There are total about 11-50 people in our office.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What Can You Buy From Us?
CT/MRI; Laboratory Equipment; Diagnostic Equipment; ICU Equipment; Theatre Equipment; Hemodialysis Equipment.
4. Why Should You Buy From Us Not From Other Suppliers?
1.13 years medical equipment leading exporter
2.One-stop service
3.High quality assurance system
4.Best Professional after-sell service with branch in Nigeria and Madagascar
5.Factory price
5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF, EXW,FAS,CIP,FCA,DEQ;
Accepted Payment Currency: USD, EUR,CAD, AUD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card,PayPal, Western Union, Cash,Escrow;
Language Spoken:English, Chinese,Spanish, Japanese, Portuguese, German, Arabic, French,Korean
