Electric Powered Automated Blood Grouping System Blood Type Test Machine Blood Testing Equipment

Share to:

Electric Powered Automated Blood Grouping System Blood Type Test Machine Blood Testing Equipment

Throughput: 400 test/hour
Standard specification:

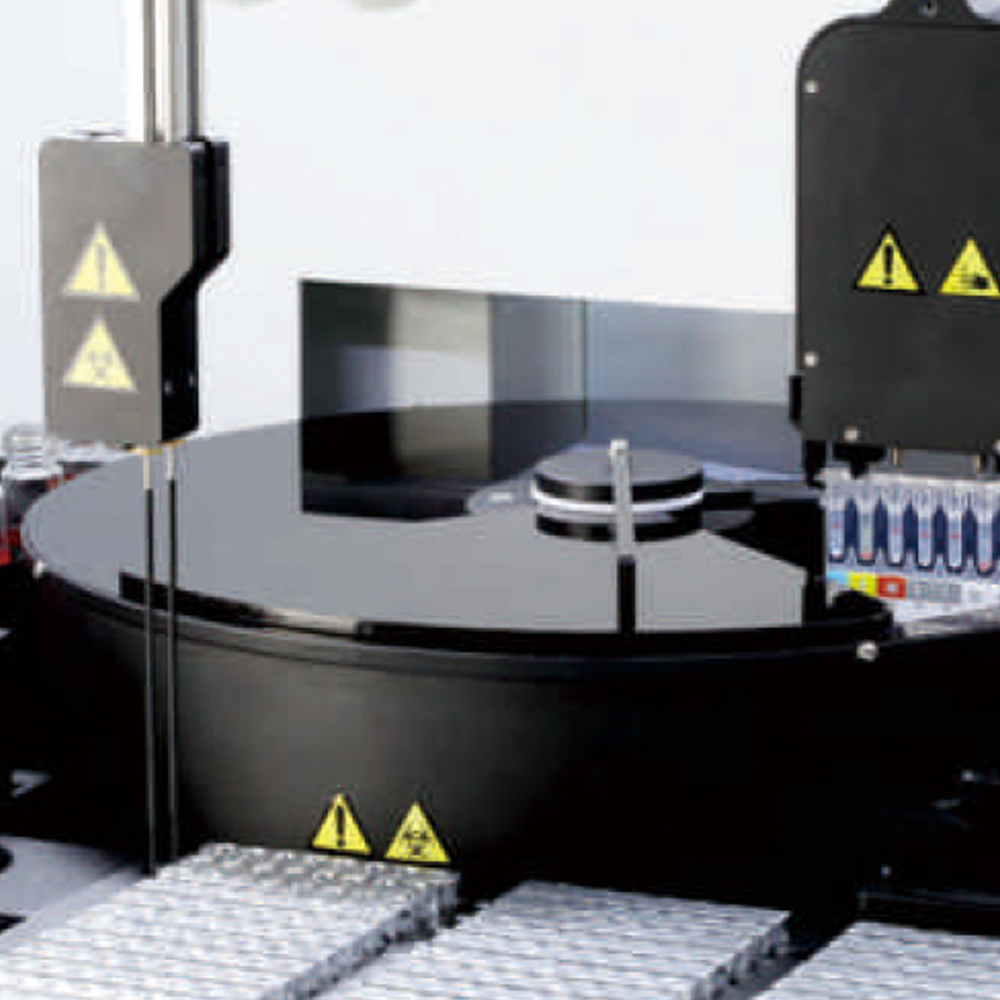

• 2 Mechanical arms
• 1 Mechanical gripper
• 2 Sample adding channels
• 96 Sample positions
• 48 Card positions
• 1 Centrifuge (24 card positions)
• 1 Incubator (24 card positions)
Test item ： Blood grouping ABO/RhD, forward & reverse grouping, phenotyping RH, direct AHG test, antibody screening and identification,crossmatching, antibody titration etc.
Test carrier ： Gel card
Throughput ： 42 card/hour
Sample position ： 96
Reagent position ： 10
New-card position ： 48
Barcode scanning ： sample tube barcode, gel card barcode, reagent barcode; support various barcodes
Mechanical arm ： 2 mechanical arm, 2 sample adding channels, using permanent sampling probe, 1 mechanical gripper with accuracy ±0.2mm
Precision of sample adding ：
Sample volume Precision (CV) Accuracy 10μL ≤3% ±5%
50μL ≤2% ±2%
100μL ≤1% ±2%
Sample volume ： 5~1000uL
Incubator ： 24 card positions, room temperature - 60°C
Centrifuge ： 24 card positions, 0-2000 rev/min
Reading system ： CCD digital imaging technology with clear and accurate test data and images
Operation mode ： Continuous loading of samples, reagents and gel cards
Communication port ： CAN, USB, available for LIS/HIS
Operation system ： Windows 7/10, MYSQL
Working environment ： Temperature: 15-32°C, humidity: 30%-80%
Power requirement ： AC85-240, 50Hz, 300VA

Availability:

Quantity:



Inquire Add to Basket

Model:
MY-B006A-4

Automatic blood grouping system blood grouping system Auto Hematology Analyzer Clinical Analytical Equipment Chemistry Hematology Analyzer hematology analyzer Blood Testing Equipment Clinical Analytical Instruments

Product Description

Technical Parameters

FAQ

The three-category fully automatic blood analyzer is a device used to analyze human blood samples. It can automatically perform measurements and analysis of three basic blood parameters: white blood cell count, red blood cell count, and hemoglobin level. This instrument is typically utilized in medical laboratories, hospitals, clinics, and research institutions for assessing the blood condition of patients.

Product Advantage：

Fully automated operation
Rapid analysis
Accurate measurement
Measurement of multiple parameters
Sample processing capability
Data management functionality

Product Uses：

Medical laboratories, hospitals, clinics, and research institutions for assessing the blood condition of patients.

Product Operate Guide：

The operation of the machine is not done once and for all, and it is necessary to pay special attention to the state of the machine during each packaging process. In order to effectively manage and maintain the packaging machine and control the product quality, in addition to regular maintenance, the auxiliary personnel and feeding personnel of the equipment also need to follow the following operating procedures.

Auxiliary personnel

Turn on the power switch
Check whether the air pressure is sufficient (must reach 0.6Mpa)
Click the host to start, and check whether each action is working properly
Check and clean up each box room
Put the bag, load the material, put the material box
Click the host to start
The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10)
During the production process, check the product sealing and pumping conditions continuously
Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean
The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand

Throughput: 400 test/hour

Standard specification:

• 2 Mechanical arms

• 1 Mechanical gripper

• 2 Sample adding channels

• 96 Sample positions

• 48 Card positions

• 1 Centrifuge (24 card positions)

• 1 Incubator (24 card positions)

Test item ： Blood grouping ABO/RhD, forward & reverse grouping, phenotyping RH, direct AHG test, antibody screening and identification,crossmatching, antibody titration etc.

Test carrier ： Gel card

Throughput ： 42 card/hour

Sample position ： 96

Reagent position ： 10

New-card position ： 48

Barcode scanning ： sample tube barcode, gel card barcode, reagent barcode; support various barcodes

Mechanical arm ： 2 mechanical arm, 2 sample adding channels, using permanent sampling probe, 1 mechanical gripper with accuracy ±0.2mm

Precision of sample adding ：

Sample volume Precision (CV) Accuracy 10μL ≤3% ±5%

50μL ≤2% ±2%

100μL ≤1% ±2%

Sample volume ： 5~1000uL

Incubator ： 24 card positions, room temperature - 60°C

Centrifuge ： 24 card positions, 0-2000 rev/min

Reading system ： CCD digital imaging technology with clear and accurate test data and images

Operation mode ： Continuous loading of samples, reagents and gel cards

Communication port ： CAN, USB, available for LIS/HIS

Operation system ： Windows 7/10, MYSQL

Working environment ： Temperature: 15-32°C, humidity: 30%-80%

Power requirement ： AC85-240, 50Hz, 300VA
