You are here: Home » Product Category » Operation Room Equipment » Hemodialysis Machine » CE Hemodialysis Machine for Kidney Dialysis Product in the Category of Transfusion Dialysis & Circulation Machines

CE Hemodialysis Machine for Kidney Dialysis Product in the Category of Transfusion Dialysis & Circulation Machines

Share to:

CE Hemodialysis Machine for Kidney Dialysis Product in the Category of Transfusion Dialysis & Circulation Machines

Treatment Mode: HD ,HF-ONLINE, HDF-ONLINE,IUF, HP ,Plasma adsorption
Double-stage endotoxin filtration(HDF-ONLINE)
Dimensions(mm): 1460*490*715
Net weight: Aprox.85kg
Power supply: AC 100~240V ,47-63Hz
VP :-700~+800mmhg,Accuracy ±5mmhg
AP :-700~+800mmhg,Accuracy ±5mmhg
TMP :-700~+800mmhg,Accuracy ±5mmhg
Blood flow :0~700ml/Min,Accuracy:±10mL/min
Dialysate flow:0,100mL/min~1000mL/min,±5%
Dialysate temperature : 33℃~40℃,Accuracy±0.5℃
Dialysate Conductivity: 12.0 mS/cm~18.0mS/cm,Accuracy ±0.1mS/cm
Substitution Flow:0~650mL/min,Accurancy:±10mL/min
Substitution Flow Range:0~39L/h
Water Pressure range:0~8.0 bar
Water Temperature range:5~35℃
Heparin Pump flow:0~10mL/h
Rapid injection Rate :10~1800 mL/h
Heparin Syringe size:10mL. 20mL,30mL,50mL
Air Detector:detecting≧0.02ml bubbles or≧0.0003ml continuous tiny bubbles
Blood Detect:Optical test
Blood leak monitor: detecting blood leak≥0.35ml/min(HCT 32%)
Decalcifiction :Rinse,Citrate Sodium or Glacial Acetic Acid
Thermal Disinfection :Hot water or Citrate Sodium (>93℃)
Chemical Disinfection:Sodium hypochlorite or peracetic acid
Blood Pressure:0mmHg~300mmHg
Resolution:1mmHg
To ensure measurement accuracy of blood pressure(adult):40mmHg~245mmHg

Adult Pulse Monitoring:30bpm~220bpm
Monitoring Error:±3bpm or reading ±2%

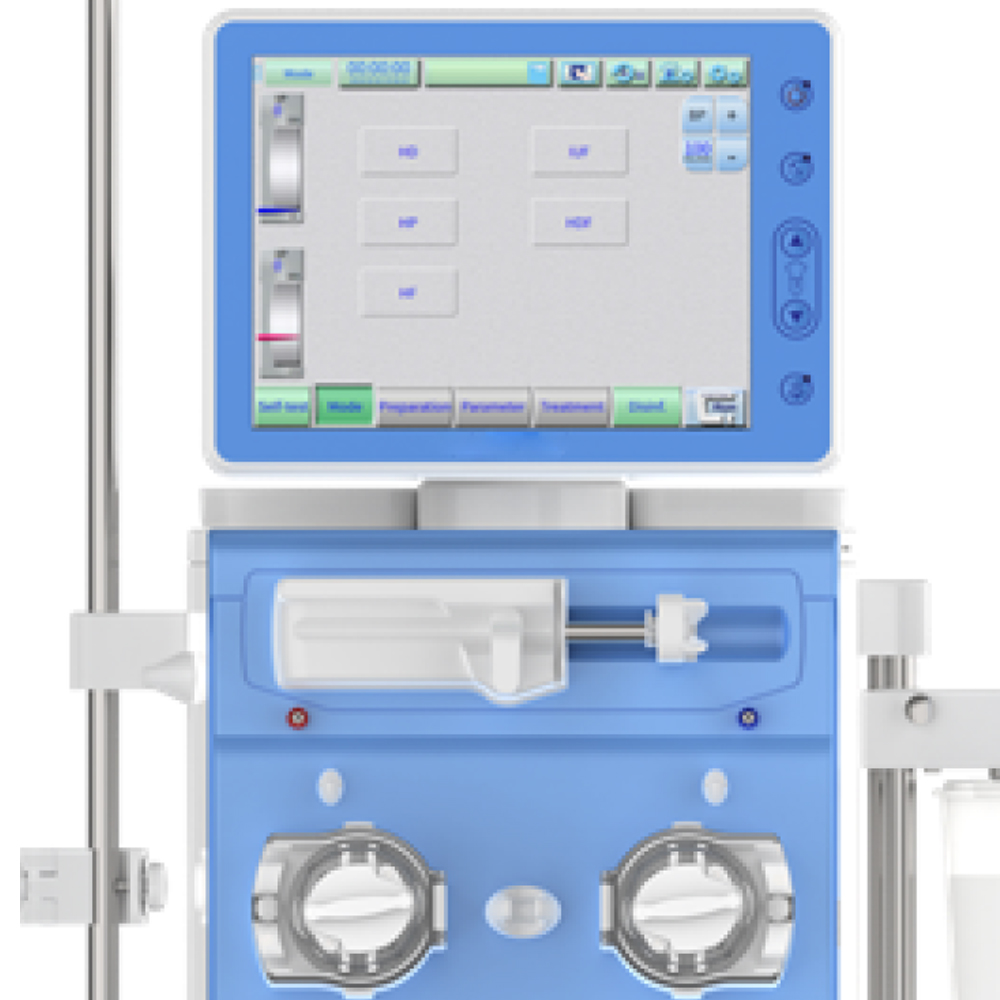

Well-designed user interface LCD touch screen
multi-language system
Connector:Ethernet,RS232/RS485,USB
Back-up battery supply power 40 mins after eletricity off
KT/V calculation evaluates the sufficiency of dialysis

Availability:

Quantity:



Inquire Add to Basket

Model:
MY-O002C

Hemodialysis machine Hemodialysis machine price medical hemodialysis machine Kidney Hemodialysis machine

Product Description

Technical Parameters

FAQ

Medical infusion pumps are devices used to deliver fluids, medications, and nutrients to patients in a controlled and precise manner. They are essential in various healthcare settings, including hospitals, outpatient clinics, and home care.

Product Advantage：

· Life-Saving: Provides critical support for patients with severe kidney dysfunction, extending life expectancy.
· Improved Quality of Life: Regular dialysis treatments can alleviate symptoms of kidney failure, improving overall health and well-being.
· Versatility: Can be used in various clinical settings, including hospitals, dialysis centers, and even at home for some patients.
· Advanced Technology: Modern machines incorporate sophisticated monitoring systems and automated features, ensuring safety and efficiency during treatment.

Product Uses：

Renal Replacement Therapy: Primarily used for patients with chronic kidney disease (CKD) or acute kidney injury (AKI) who require regular dialysis sessions.
· Toxin Removal: Efficiently removes urea, creatinine, and other harmful substances from the bloodstream.
· Fluid Management: Helps regulate electrolyte balance and control fluid levels in patients.

Product Operate Guide：

The operation of the machine is not done once and for all, and it is necessary to pay special attention to the state of the machine during each packaging process. In order to effectively manage and maintain the packaging machine and control the product quality, in addition to regular maintenance, the auxiliary personnel and feeding personnel of the equipment also need to follow the following operating procedures.

Auxiliary personnel

Turn on the power switch
Check whether the air pressure is sufficient (must reach 0.6Mpa)
Click the host to start, and check whether each action is working properly
Check and clean up each box room
Put the bag, load the material, put the material box
Click the host to start
The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10)
During the production process, check the product sealing and pumping conditions continuously
Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean
The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand

Treatment Mode: HD ,HF-ONLINE, HDF-ONLINE,IUF, HP ,Plasma adsorption

Double-stage endotoxin filtration(HDF-ONLINE)

Dimensions(mm): 1460*490*715

Net weight: Aprox.85kg

Power supply: AC 100~240V ,47-63Hz

VP :-700~+800mmhg,Accuracy ±5mmhg

AP :-700~+800mmhg,Accuracy ±5mmhg

TMP :-700~+800mmhg,Accuracy ±5mmhg

Blood flow :0~700ml/Min,Accuracy:±10mL/min

Dialysate flow:0,100mL/min~1000mL/min,±5%

Dialysate temperature : 33℃~40℃,Accuracy±0.5℃

Dialysate Conductivity: 12.0 mS/cm~18.0mS/cm,Accuracy ±0.1mS/cm

Substitution Flow:0~650mL/min,Accurancy:±10mL/min

Substitution Flow Range:0~39L/h

Water Pressure range:0~8.0 bar

Water Temperature range:5~35℃

Heparin Pump flow:0~10mL/h

Rapid injection Rate :10~1800 mL/h

Heparin Syringe size:10mL. 20mL,30mL,50mL

Air Detector:detecting≧0.02ml bubbles or≧0.0003ml continuous tiny bubbles

Blood Detect:Optical test

Blood leak monitor: detecting blood leak≥0.35ml/min(HCT 32%)

Decalcifiction :Rinse,Citrate Sodium or Glacial Acetic Acid

Thermal Disinfection :Hot water or Citrate Sodium (>93℃)

Chemical Disinfection:Sodium hypochlorite or peracetic acid

Blood Pressure:0mmHg~300mmHg

Resolution:1mmHg

To ensure measurement accuracy of blood pressure(adult):40mmHg~245mmHg

Adult Pulse Monitoring:30bpm~220bpm

Monitoring Error:±3bpm or reading ±2%

Well-designed user interface LCD touch screen

multi-language system

Connector:Ethernet,RS232/RS485,USB

Back-up battery supply power 40 mins after eletricity off

KT/V calculation evaluates the sufficiency of dialysis

1. Who Are We?

We are based in Guangzhou, China, start from 2011,sell to Mid East (31.00%), Africa(23.00%),South America(18.00%), North America(13.00%) ,Southeast Asia(12.00%),Oceania(1.00%), Western Europe (1.00%),Central America(1.00%). There are total about 11-50 people in our office.

2. How Can We Guarantee Quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

3.What Can You Buy From Us?

CT/MRI; Laboratory Equipment; Diagnostic Equipment; ICU Equipment; Theatre Equipment; Hemodialysis Equipment.

4. Why Should You Buy From Us Not From Other Suppliers?

1.13 years medical equipment leading exporter

2.One-stop service

3.High quality assurance system

4.Best Professional after-sell service with branch in Nigeria and Madagascar

5.Factory price

5. What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF, EXW,FAS,CIP,FCA,DEQ;

Accepted Payment Currency: USD, EUR,CAD, AUD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card,PayPal, Western Union, Cash,Escrow;

Language Spoken:English, Chinese,Spanish, Japanese, Portuguese, German, Arabic, French,Korean
