30 Channel Auto ESR Analyzer Clinical Analytical Instrument for Blood Analysis-Erythrocyte Sedimentation Rate

Share to:

30 Channel Auto ESR Analyzer Clinical Analytical Instrument for Blood Analysis-Erythrocyte Sedimentation Rate

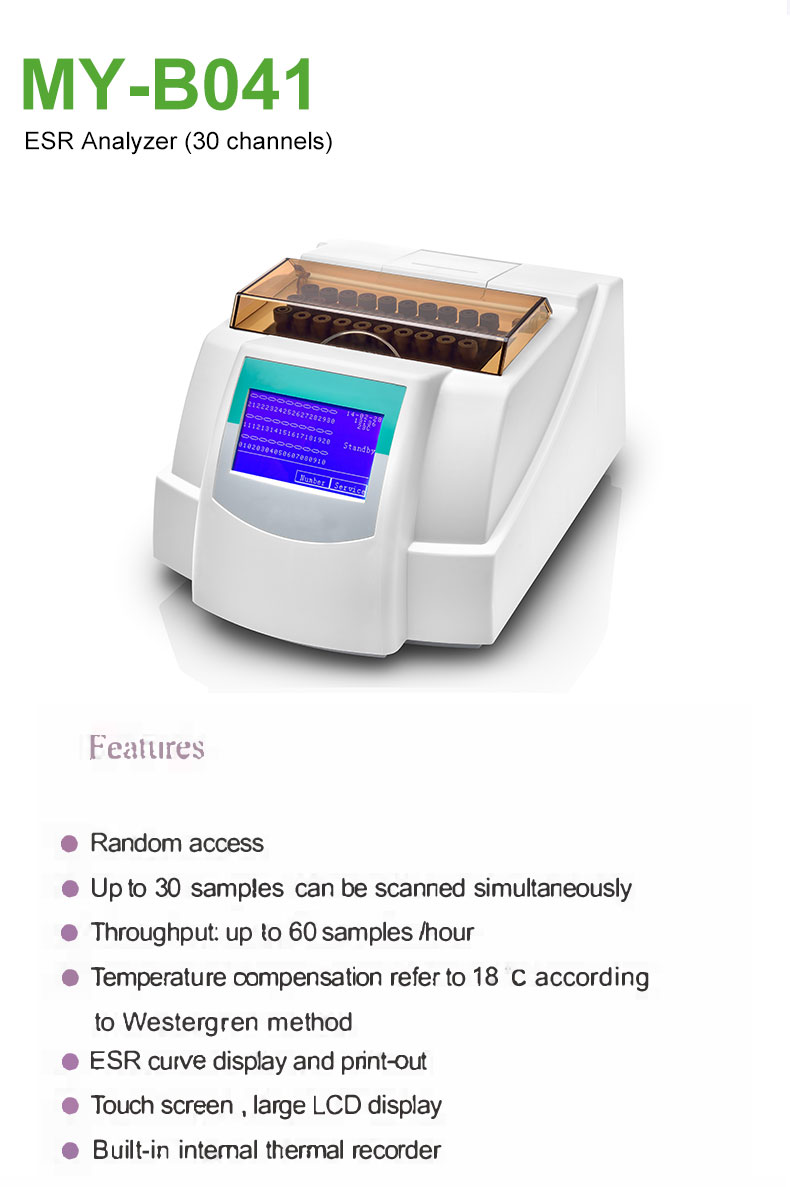

Features of the ESR Analyzer :
Random access
Up to 30 samples can be scanned simultaneously
Throughput: up to 60 samples /hour
Temperature compensation refer to 18oC according to Westergren method

ESR curve display and print-out
Touch screen , large LCD display
Built-in internal thermal recorder

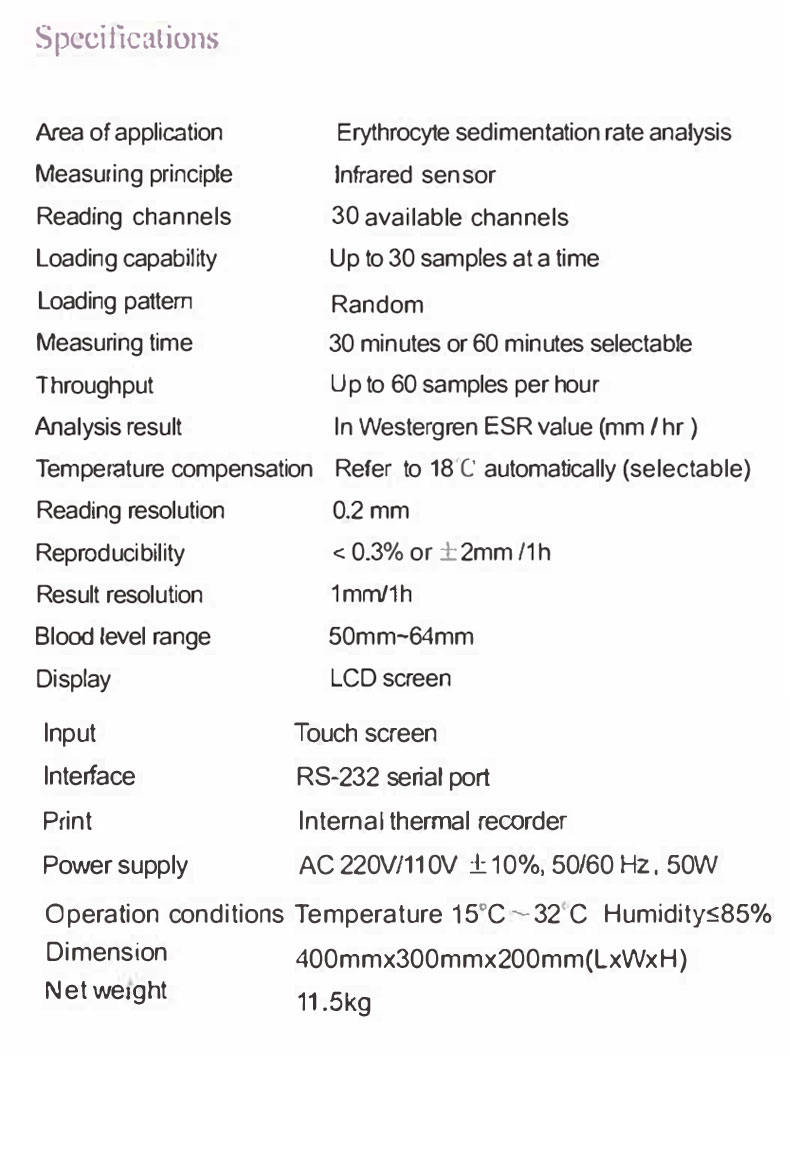

Specifications of the ESR Analyzer:

Area of application Erythrocyte sedimentation rate analysis
Measuring principle Infrared sensor
Reading channels 30 available channels
Loading capability Up to 30 samples at a time
Loading pattern Random

Measuring time 30 minutes or 60 minutes selectable
Throughput Up to 60 samples per hour
Analysis result In Westergren ESR value (mm/hr)
Temperature compensation Refer to 18°C automatically (selectable)
Reading resolution 0.2mm
Reproducibility < 0.3% or 2mm/1h

Result resolution 1mm/1h
Blood level range 50mm~64mm
Display LCD screen with backlight
Input Touch screen
Interface RS-232 serial port

Print Internal thermal recorder
Power supply AC 220V/110V ±10%, 50/60/Hz, 50W
Operation conditions Temperature 15C°~32°C Humidity ≤85%
Dimension 400mm×300mm×200mm(L×W×H)
Net weight 11.5kg

Availability:

Quantity:



Inquire Add to Basket

Model:
B041

ESR Analyzer Auto ESR Analyzer Semi-auto Chemistry Analyzer Chemistry Analyzer portable blood chemistry analyzer veterinary blood chemistry analyzer refurbished chemistry analyzer

Product Description

Technical Parameters

FAQ

The three-category fully automatic blood analyzer is a device used to analyze human blood samples. It can automatically perform measurements and analysis of three basic blood parameters: white blood cell count, red blood cell count, and hemoglobin level. This instrument is typically utilized in medical laboratories, hospitals, clinics, and research institutions for assessing the blood condition of patients.

Product Advantage：

High Throughput: They can process a large number of samples quickly, making them ideal for high-volume laboratories.
Accuracy and Precision: Automated systems minimize human error, ensuring more reliable and reproducible results.
Versatility: They can perform a wide variety of tests, including blood glucose, cholesterol levels, liver function, and kidney function tests.
Cost-Efficiency: Automation reduces the need for manual labor and lowers the overall operational costs.

Product Uses：

Clinical chemistry tests (e.g., blood glucose, lipid profiles)
Monitoring of metabolic disorders (e.g., diabetes)
Liver and kidney function tests
Toxicology and drug testing

Product Operate Guide：

The operation of the machine is not done once and for all, and it is necessary to pay special attention to the state of the machine during each packaging process. In order to effectively manage and maintain the packaging machine and control the product quality, in addition to regular maintenance, the auxiliary personnel and feeding personnel of the equipment also need to follow the following operating procedures.

Auxiliary personnel

Turn on the power switch
Check whether the air pressure is sufficient (must reach 0.6Mpa)
Click the host to start, and check whether each action is working properly
Check and clean up each box room
Put the bag, load the material, put the material box
Click the host to start
The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10)
During the production process, check the product sealing and pumping conditions continuously
Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean
The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand

Features of the ESR Analyzer :

Random access

Up to 30 samples can be scanned simultaneously

Throughput: up to 60 samples /hour

Temperature compensation refer to 18oC according to Westergren method

ESR curve display and print-out

Touch screen , large LCD display

Built-in internal thermal recorder

Specifications of the ESR Analyzer:

Area of application Erythrocyte sedimentation rate analysis

Measuring principle Infrared sensor

Reading channels 30 available channels

Loading capability Up to 30 samples at a time

Loading pattern Random

Measuring time 30 minutes or 60 minutes selectable

Throughput Up to 60 samples per hour

Analysis result In Westergren ESR value (mm/hr)

Temperature compensation Refer to 18°C automatically (selectable)

Reading resolution 0.2mm

Reproducibility < 0.3% or 2mm/1h

Result resolution 1mm/1h

Blood level range 50mm~64mm

Display LCD screen with backlight

Input Touch screen

Interface RS-232 serial port

Print Internal thermal recorder

Power supply AC 220V/110V ±10%, 50/60/Hz, 50W

Operation conditions Temperature 15C°~32°C Humidity ≤85%

Dimension 400mm×300mm×200mm(L×W×H)

Net weight 11.5kg

1. Who Are We?

We are based in Guangzhou, China, start from 2011,sell to Mid East (31.00%), Africa(23.00%),South America(18.00%), North America(13.00%) ,Southeast Asia(12.00%),Oceania(1.00%), Western Europe (1.00%),Central America(1.00%). There are total about 11-50 people in our office.

2. How Can We Guarantee Quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

3.What Can You Buy From Us?

CT/MRI; Laboratory Equipment; Diagnostic Equipment; ICU Equipment; Theatre Equipment; Hemodialysis Equipment.

4. Why Should You Buy From Us Not From Other Suppliers?

1.13 years medical equipment leading exporter

2.One-stop service

3.High quality assurance system

4.Best Professional after-sell service with branch in Nigeria and Madagascar

5.Factory price

5. What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF, EXW,FAS,CIP,FCA,DEQ;

Accepted Payment Currency: USD, EUR,CAD, AUD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card,PayPal, Western Union, Cash,Escrow;

Language Spoken:English, Chinese,Spanish, Japanese, Portuguese, German, Arabic, French,Korean
